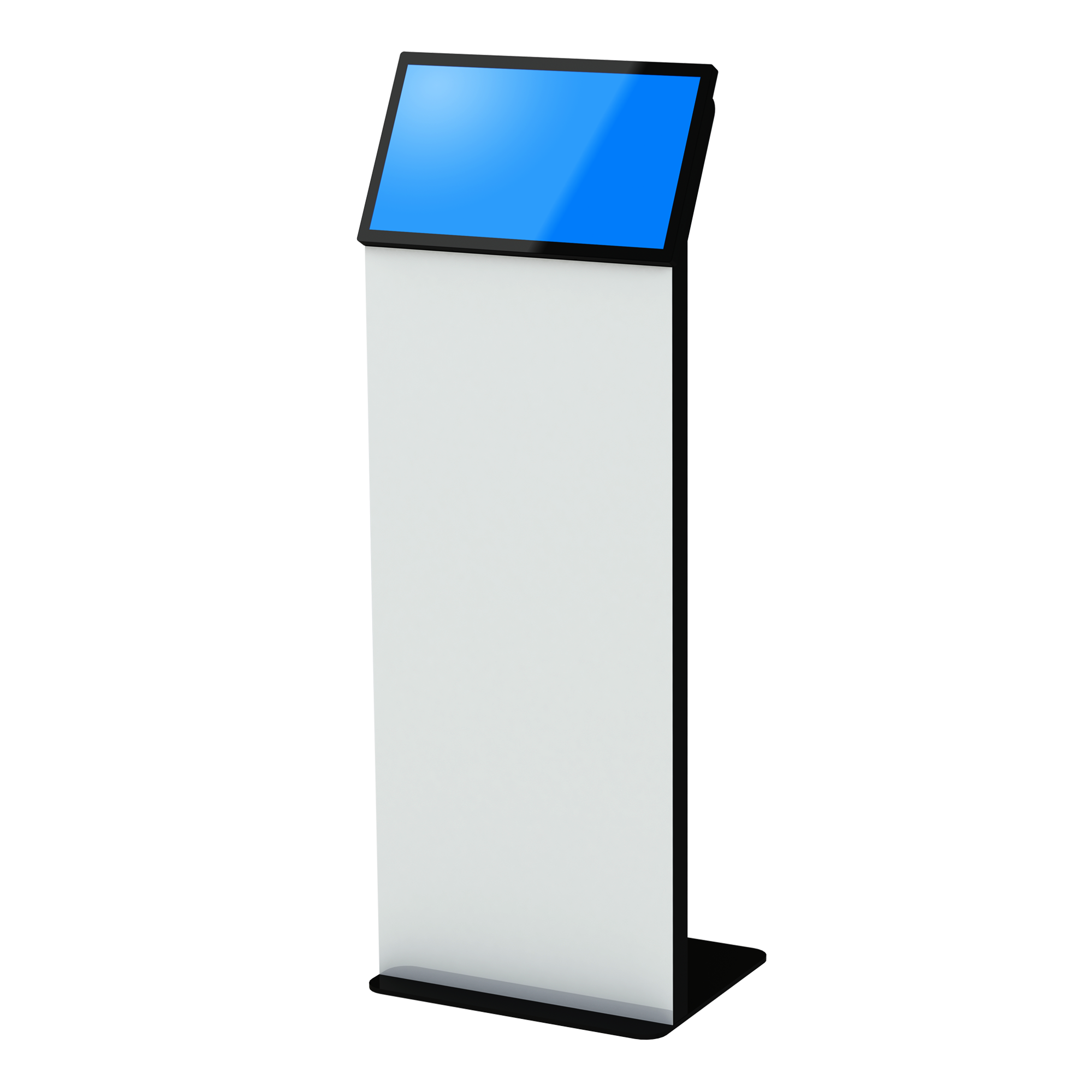

MX LITE

Kiosk with an elegant design suitable for all kinds of indoor applications. With its smooth form it offers multiple branding choices. Plenty of variations offered depending on the combination of standard and optional components.

Standard configuration:
  • 22" FullHD display with touchscreen
  • Computer configuration
  • Active stereo speakers
Options:
  • Metal keyboard with touchpad/trackball
  • 17 - 24" touch screen
  • Wi-Fi adapter
  • Web camera
  • RFID/NFC reader
  • QR scanner
  • Magnetic and smart card reader
  • POS terminal
  • Kiosk software etc.

TECHNICAL SPECIFICATIONS

Case
Vandal-proof metal case, front panel - stainless steel (INOX) or RAL color, back cover - black (shegre), metal plate with holes for wiring and mounting to the floor. Fully secured wiring.
Power supply
220 - 230 V AC/ 50 Hz
Operating temperature
+5ºC to +35ºC
Humidity
20% to 80%
Storage temperature
-10ºC to +50ºC
Humidity /Storage/
10% to 90%
Power Consumption
75W
Dimensions
1450 / 575 / 400 mm
Weight
~55 kg

Type
Industrial fanless PC
Processor
Intel Celeron J6412, (4 Cores 4 Threads, Base Frequency 2.00 GHz Turbo Frequency 2.60 GHz)
RAM
8GB DDR4
SSD
256GB
Video
Intel UHD Graphics

Size
21.5" (16:9)
Native (Optimal) Resolution
1920 х 1080
Brightness
350 nits
Contrast Ratio (typical)
1000:1
Response Time (total)
8 ms
Input Video Format
VGA, HDMI, DisplayPort
Viewing Angle
±89° / 178°
Touch screen technology
10-point, projective capacitive
Touch screen controller
USB

Touchscreen
2 х 3W active stereo speakers
Hidden 2 ports USB 2.0, LAN (Ethernet) and POWER button

Stainless steel vandal-proof keyboard - US and/or BG layout with trackball or touchpad, USB
17" – 24" touch screen display
Wi-Fi adapter
Web camera
RFID/NFC reader
QR scanner
Magnetic and smart card reader
POS terminal
Telephone handset
Custom computer configuration
Kiosk software - SiteKiosk 9
